S31803/S32205
TISCO, POSCO, BAOSTEEL, JISCO LISCO
7219132900

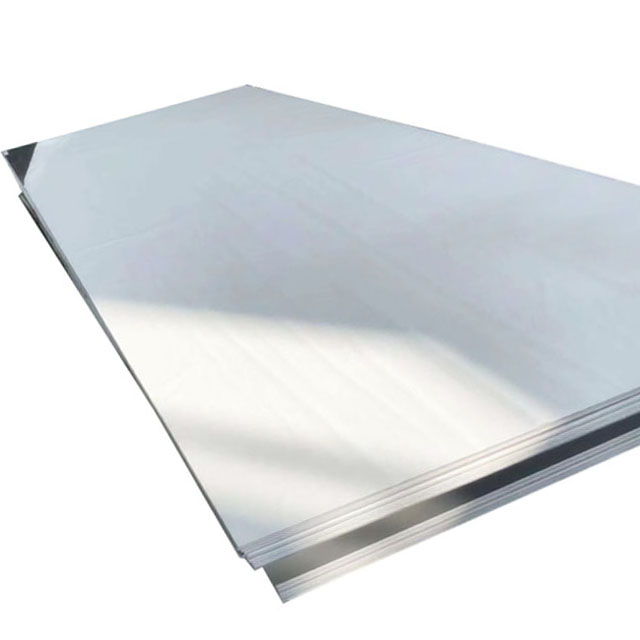

Type 2205 Bendable Polished Hot Rolled Steel Plate is meant for applications that involve being used in either for general applications or in pressure vessels.
STANDARD | WERKSTOFF NR. | UNS |
Duplex 2205 Plate | 1.4462 / 1.4462 | UNS S31803 / UNS S32205 |
Element | Percent By Weight | |
Cr | Chromium | 22.0 - 23.0% |
Ni | Nickel | 4.5 - 6.5% |
Mn | Manganese | 2.0% max |
Si | Silicon | 1.0% max |
P | Phosphorous | 0.03% max |
S | Sulfur | 0.02% max |
C | Carbon | 0.03% max |
N | Nitrogen | 0.1 - 0.2% |
Mo | Molybdenum | 3.0 - 3.5% |
Fe | Iron | Balance |
Thickness greater than 6.35 mm is called a duplex 2205 Plate.
Thickness greater than 0.15 mm and less than 6.35mm is called a duplex 2205 Sheet.
Thickness less than 0.15mm is called a duplex 2205 Foil.
Flue gas desulfurization equipment
Pulp mill digesters, bleach washers, chip pre-steaming vessels
Chemical process vessels, piping and heat exchangers
Food processing equipment
Oil field piping and heat exchangers
