Type 316L has almost similar quantity of Titanium content for soaring temp constancy as Machining Grade 316Ti Coil but it as well comprises Molybdenum.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17-123 | X6CrNiMoTi17-12-2 |
Element | SS 316Ti |
C | 0.08 max |
Mn | 2 max |
Si | 0.75 max |
P | 0.045 max |
S | 0.030 max |
Cr | 16 – 18 |
Ni | 10 – 14 |
Mo | 2 – 3 |
Fe | 68.395 min |
Element | SS 316Ti |
Density | 8.0 g/cm3 |
Melting Point | 1399 °C (2550 °F) |
Tensile Strength | Psi – 75000 , MPa – 515 |
Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
Elongation | 35 % |

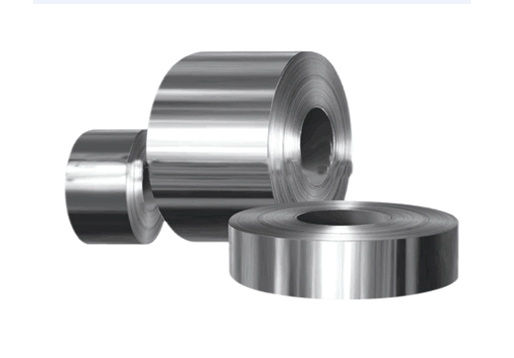

Stainless Steel Coil (Hot rolled, cold rolled) | |
Thickness | 0.3~10.0mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Standard | JIS, AISI, ASTM, GB, DIN, EN, etc |
Surface | Surface and finish of stainless steel 316Ti coil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc |
Package | Shrink-wrapped, Carton boxes, Wooden pallets, Wooden boxes, Wooden crates Etc. or as required. |
Available Surface
Product Display
Packaging and Shipping
Package: 3 layers of packing. Inside is kraft paper, water plastic film is in the middle. Outside GI steel sheet to be covered by steel strips with lock and inner coil sleeve. |
Loading Port: Tianjin/ Qingdao/Shanghai Port. |
Applied Field
FAQ
Q1: What products can you offer?
A: We can offer you general steel types like 310S, 316L,304.304L.201,904L, 316H, 316,316L 300and 400 series, and duplex stainless steel like 2205, 2304,2101,2507,etc. 904L, 800H, 600H high-nickel alloy.
Q2. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q3. How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality control from beginning to end.
Q4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request,
but you have to bear their own costs incurred during this period and the spreads.
Q5: How long is the delivery time?
A: 3~30working days after confirming the payment.
If the order is urgent, we will push our workshop finish in advance.
Q6: What is your Payment?
A: T/T, L/C, etc.
