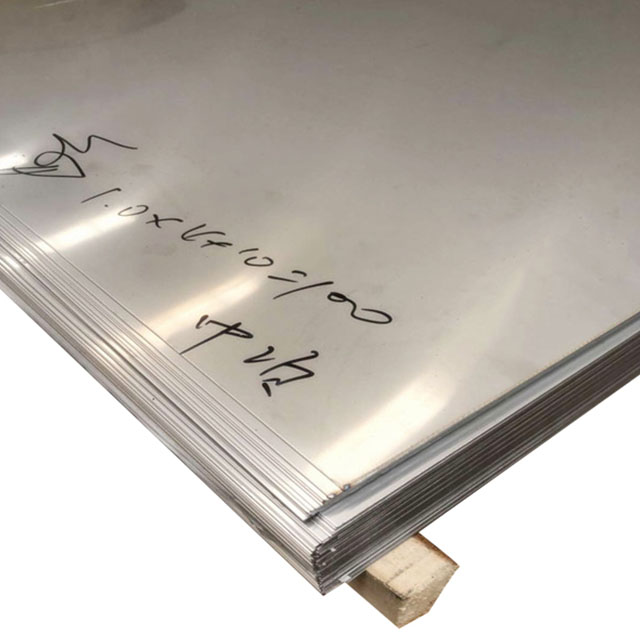

317 plate
US $1750.0-1750.0 / Ton
SS 317 sheets
US $1500-5000 / Ton
stainless steel 317 shim sheets
US $30-80 / Metric Ton
ASTM A240 317 stainless steel chequered plates
US $1.25-5.56 / Kilogram
317 coils
US $1000-2000 / Metric Ton
Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
SS UNS S31703 Plate Sizes
SS 317 Plate Thickness | SS 317 Plate Size | SS 317 Sheet Weight per Unit Area | Estimated Weight per Sheet |
0.015 inches 0.381 mm | 36 x 96 | 0.630 lbs/ft²3.07566 kg/m² | 15.12 lbs6.84936 kg |
0.015 inches 0.381 mm | 36 x 120 | 0.630 lbs/ft²3.07566 kg/m² | 18.90 lbs8.5617 kg |
0.0178 inches 0.45212 mm | 36 x 96 | 0.756 lbs/ft²3.690792 kg/m² | 18.15 lbs8.22195 kg |
0.0178 inches 0.45212 mm | 36 x 120 | 0.756 lbs/ft²3.690792 kg/m² | 22.68 lbs10.27404 kg |
0.0178 inches 0.45212 mm | 48 x 96 | 0.756 lbs/ft²3.690792 kg/m² | 24.19 lbs10.95807 kg |
0.0178 inches 0.45212 mm | 48 x 120 | 0.756 lbs/ft²3.690792 kg/m² | 30.24 lbs13.69872 kg |
0.0235 inches 0.5969 mm | 30 x 96 | 1.008 lbs/ft²4.921056 kg/m² | 20.16 lbs9.13248 kg |
0.0235 inches 0.5969 mm | 30 x 120 | 1.008 lbs/ft²4.921056 kg/m² | 25.20 lbs11.4156 kg |
0.0235 inches 0.5969 mm | 36 x 96 | 1.008 lbs/ft²4.921056 kg/m² | 24.19 lbs10.95807 kg |
0.0235 inches 0.5969 mm | 36 x 120 | 1.008 lbs/ft²4.921056 kg/m² | 30.24 lbs13.69872 kg |
0.0235 inches 0.5969 mm | 36 x 144 | 1.008 lbs/ft²4.921056 kg/m² | 36.29 lbs16.43937 kg |
0.0235 inches 0.5969 mm | 48 x 96 | 1.008 lbs/ft²4.921056 kg/m² | 32.26 lbs14.61378 kg |
0.0235 inches 0.5969 mm | 48 x 120 | 1.008 lbs/ft²4.921056 kg/m² | 40.32 lbs18.26496 kg |
0.0235 inches 0.5969 mm | 48 x 144 | 1.008 lbs/ft²4.921056 kg/m² | 48.39 lbs21.92067 kg |
0.0291 inches 0.73914 mm | 30 x 96 | 1.260 lbs/ft²6.15132 kg/m² | 25.20 lbs11.4156 kg |
0.0291 inches 0.73914 mm | 30 x 120 | 1.260 lbs/ft²6.15132 kg/m² | 31.50 lbs14.2695 kg |
0.0291 inches 0.73914 mm | 36 x 96 | 1.260 lbs/ft²6.15132 kg/m² | 30.24 lbs13.69872 kg |
0.0291 inches 0.73914 mm | 36 x 120 | 1.260 lbs/ft²6.15132 kg/m² | 37.80 lbs17.1234 kg |
0.0291 inches 0.73914 mm | 36 x 144 | 1.260 lbs/ft²6.15132 kg/m² | 45.37 lbs20.55261 kg |
0.0291 inches 0.73914 mm | 48 x 96 | 1.260 lbs/ft²6.15132 kg/m² | 40.32 lbs18.26496 kg |
0.0291 inches 0.73914 mm | 48 x 120 | 1.260 lbs/ft²6.15132 kg/m² | 50.41 lbs22.83573 kg |
0.0291 inches 0.73914 mm | 48 x 144 | 1.260 lbs/ft²6.15132 kg/m² | 60.49 lbs27.40197 kg |
0.0355 inches 0.9017 mm | 30 x 96 | 1.512 lbs/ft²7.381584 kg/m² | 30.24 lbs13.69872 kg |
0.0355 inches 0.9017 mm | 30 x 120 | 1.512 lbs/ft²7.381584 kg/m² | 37.80 lbs17.1234 kg |
0.0355 inches 0.9017 mm | 36 x 96 | 1.512 lbs/ft²7.381584 kg/m² | 36.29 lbs16.43937 kg |
| STANDARD VARIANCE FROM | |
SHEET METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
7 | 0.1793 | 0.0080 |
8 | 0.1644 | 0.0080 |
9 | 0.1495 | 0.0080 |
10 | 0.1345 | 0.0070 |
11 | 0.1196 | 0.0050 |
12 | 0.1046 | 0.0050 |
13 | 0.0897 | 0.0050 |
14 | 0.0747 | 0.0040 |
15 | 0.0673 | 0.0040 |
16 | 0.0598 | 0.0030 |
17 | 0.0538 | 0.0030 |
18 | 0.0478 | 0.0030 |
19 | 0.0418 | 0.0030 |
20 | 0.0359 | 0.0030 |
21 | 0.0329 | 0.0025 |
22 | 0.0299 | 0.0020 |
23 | 0.0269 | 0.0020 |
24 | 0.0239 | 0.0020 |
25 | 0.0209 | 0.0015 |
26 | 0.0179 | 0.0015 |
28 | 0.0149 | 0.0010 |
