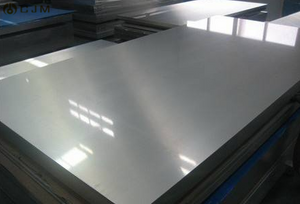

Type 316 Weldable Roof Cold Rolled Steel Sheet

Type 316 Weldable Roof Cold Rolled Steel Sheet has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields.
Availability:
Quantity:
  • 316

  • TISCO, POSCO, BAOSTEEL, JISCO LISCO

  • 7219132900

Product Description
Overview

316 stainless steel plate is an austenitic alloy with increased nickel and molybdenum content that demonstrates superior corrosion-resistant properties. It provides excellent high temperature tensile, creep and stress-rupture strength, as well as outstanding formability and weldability. This material type has lower carbon content than other alloys, making it very popular for heavy-gauge welded applications.

Product Description

Roof Type 316 Cold Rolled Steel Sheet Mechanical Properties

Grade

Density

Melting Point

Tensile Strength

Yield Strength (0.2%Offset)

Elongation

SS 316

8.0 g/cm3

1400 °C (2550 °F)

Psi – 75000 , MPa – 515

Psi – 30000 , MPa – 205

35 %


Chemical Composition about Polished Weldable Type 304L Cold Rolled Steel Sheet:

Description

Roof Weldable Type 304L Hot Rolled/Cold Rolled Steel Sheet

Standard

ASTM, ASME, BS, DIN, EN

Material

310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L,

302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc

Specification

Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.

Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt.

Technique

Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Form

Corrugated Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc.

Surface

2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching

Thickness

0.25-200mm,  0.3mm to 120mm

Width

1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm

Package

Standard Export Seaworthy Package, or as required.

Value Added Services

Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc.

 MTC

Mill Test Certificate, Available as per EN 10204 3.1

Grade
C
Si
Mn
P
S
Ni
Cr
Mo
201
≤0 .15
≤0 .75
5. 5-7. 5
≤0.06
≤ 0.03
3.5 -5.5
16 .0 -18.0
-
202
≤0 .15
≤l.0
7.5-10.0
≤0.06
≤ 0.03
4.0-6.0
17.0-19.0
-
301
≤0 .15
≤l.0
≤2.0
≤0.045
≤ 0.03
6.0-8.0
16.0-18.0
-
302
≤0 .15
≤1.0
≤2.0
≤0.035
≤ 0.03
8.0-10.0
17.0-19.0
-
304
≤0 .0.08
≤1.0
≤2.0
≤0.045
≤ 0.03
8.0-10.5
18.0-20.0
-
304L
≤0.03
≤1.0
≤2.0
≤0.035
≤ 0.03
9.0-13.0
18.0-20.0
-
309S
≤0.08
≤1.0
≤2.0
≤0.045
≤ 0.03
12.0-15.0
22.0-24.0
-
310S
≤0.08
≤1.5
≤2.0
≤0.035
≤ 0.03
19.0-22.0
24.0-26.0

316
≤0.08
≤1.0
≤2.0
≤0.045
≤ 0.03
10.0-14.0
16.0-18.0
2.0-
3.0
316L
≤0 .03
≤1.0
≤2.0
≤0.045
≤ 0.03
12.0 - 15.0
16 .0 -1 8.0
2.0 -
3.0
321
≤ 0 .08
≤1.0
≤2.0
≤0.035
≤ 0.03
9.0 - 13 .0
17.0 -1 9.0
-
630
≤ 0 .07
≤1.0
≤1.0
≤0.035
≤ 0.03
3.0-5.0
15.5-17.5
-
631
≤0.09
≤1.0
≤1.0
≤0.030
≤0.035
6.50-7.75
16.0-18.0
-
904L
≤ 2 .0
≤0.045
≤1.0
≤0.035
-
23.0·28.0
19.0-23.0
4.0-5.0
2205
≤0.03
≤1.0
≤2.0
≤0.030
≤0.02
4.5-6.5
22.0-23.0
3.0-3.5
2507
≤0.03
≤0.8
≤1.2
≤0.035
≤0.02
6.0-8.0
24.0-26.0
3.0-5.0
2520
≤0.08
≤1.5
≤2.0
≤0.045
≤ 0.03
0.19 -0. 22
0. 24 -0 . 26
-
410
≤0.15
≤1.0
≤1.0
≤0.035
≤ 0.03
-
11.5-13.5
-
430
≤0.1 2
≤0.75
≤1.0
≤ 0.040
≤ 0.03
≤0.60
16.0 -18.0
-

 微信图片_20211209113944

Packaging & Shipping


Roof Weldable Type 304L Cold Rolled Steel Sheet Packaging:

Our steel & Metal Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.



We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:

• Boxes and Crates

• Shrink-wrapped

• Carton boxes

• Wooden pallets

微信图片_20211122152344HTB1v3eFRpXXXXacaFXXq6xXFXXXB

微信图片_20211209114006微信图片_20211210160901


Our Services
微信图片_20211210160844
Company Information

Jiangsu C.J.M. Stainless Steel Group  is a supplier and distributor of stainless steel, nickel, steel, aluminum, titanium, brass and bronze with world class production and quality control.

We are an ISO 9001:2015 registered company and have been recognized for more than 20 years as one of the world's leading suppliers and distributors of quality metals, committed to rapid response, superior quality, competitive prices, reliable delivery and comprehensive inventory.

plate 1
FAQ

Q1: What products can you offer?
A: We can offer you general steel types like 310S, 316L,304.304L.201,904L, 316H, 316,316L 300and 400 series, and duplex stainless steel like 2205, 2304,2101,2507,etc. 904L, 800H, 600H high-nickel alloy.

Q2. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q3. How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality controlling from the beginning to end.

Q4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request,
but you have to bear their own costs incurred during this period and the spreads.


Q5: How long is the delivery time?
A: 3~30working days after confirming the payment.
If the order is urgent, we will push our workshop finish in advance.

Q6: What is your Payment?

A:  100% T/T advance, Western Union (For Small Order)

B:  30% T/T and balance 70% before the shipment

C:  100% Irrevocable LC at sight  (For Big Order).

If you have any questions,Please feel free to contact with us.
